In-Row Cooling, Chilled Water

RowCool for effective heat removal in data centers

Delta’s RowCool CW delivers exceptional performance for high-temperature chilled water applications with its advanced heat exchanger design. Featuring industryleading cooling capabilities, the RowCool CW enhances overall efficiency in data center precision cooling systems. Each unit offers a remarkable cooling capacity of up to 95 kW, making it ideal for data centers requiring hundreds of kW. Designed for high efficiency and high density, the RowCool CW ensures reliable, efficient cooling for even the most demanding environments.

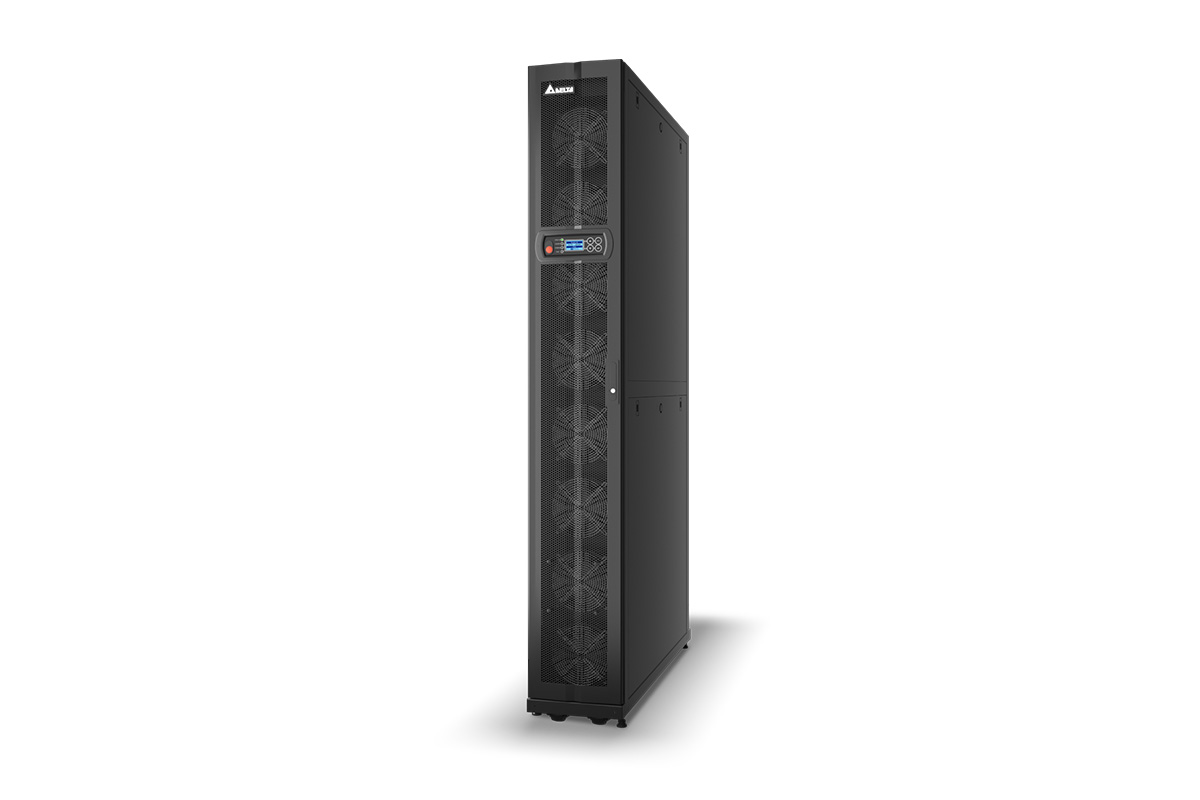

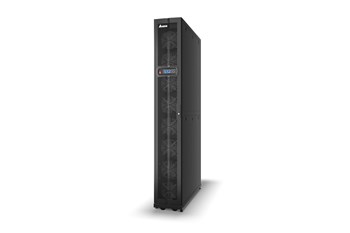

Front and rear view of RowCool 29 kW
Product available regions :

North America Latin America
•


Downloads Request a Quote

Product Introduction

Features & Benefits

High Availability

  • Dual Power Feed: supports dual power inputs, suitable for any tier level of power reliability
  • Redundant Fan System: fans automatically adjust speeds if one fails, ensuring continuous airflow
  • Hot-Swappable Parts: replace power modules and fans without downtime
  • 1+1 Redundant Power Modules: enhance reliability (available on select models)
  • Real-Time Monitoring: tracks water flow and leaks for immediate troubleshooting


High Efficiency

  • Optimized Design: enhances cooling efficiency for high-temperature chilled water systems
  • Smart Fan Control: EC fans adjust speeds in real-time based on load changes, minimizing power waste
  • Effective Heat Removal: closely integrates with IT heat loads for effective heat dissipation


High Flexibility

  • Flexible Installation: supports top or bottom piping and wiring
  • Filter Choices: high-efficiency (MERV 8) or washable (MERV 1) filters available
  • Easy Mobility: casters make installation and repositioning easy


Specifications
  1. Model
  2. CW-43
  4. Cooling Capacity
  5. Total Cooling Capacity(1): 43.4 kW
  6. Sensible Cooling Capacity(1): 43 kW
  7. Total Cooling Capacity(2): 59.1 kW
  8. Sensible Cooling Capacity(2): 59.1 kW
  9. Total Cooling Capacity(3): 37 kW
  10. Sensible Cooling Capacity(3): 37 kW
  12. Deployment
  13. Coolant Type: Chilled Water
  14. Piping Connection Location: Top/ Bottom
  15. Chilled Water Flow Rate: 80 LPM
  16. Airflow Rate: 4415 CFM
  17. Air Discharge Direction: Front
  19. Power Supply
  20. Nominal Power Supply Voltage: 208/ 220/ 230 Vac, 1P2W+PE
  21. Operating Voltage Range: 187-253 Vac
  22. Frequency: 50/ 60 Hz
  23. Maximum Power Consumption:  2.4 kW
  24. Dual Power Feed: Standard
  26. Physical
  27. Dimensions (W x D x H): 11.8 x 42.9x 78.8 inch
  28. Net Weight: 412.3 lbs
  30. Communication Interface
  31. Display: LCD+LED indicators
  32. Protocols: SNMP, Modbus RTU
  34. Environment
  35. Operating Temperature: 39.2 to 104°F
  36. Humidity: 30-85%
  38. Conformance
  39. Safety: CE
  40. Seismic Rating: GR63 Zone 4
  42. Features
  43. Leak Detection: Standard
  44. Remote Rack Temperature: Standard
  45. Drain Pump: Optional
  46. Reheat and Humidifier Lockout: Optional
  48.
  49. (1) Cooling Capacity: At 105.1°F dry bulb, 70.9°F wet bulb, and 44.6°F inlet water.
    (2) Maximum Capacity: At 120°F dry bulb, 75°F wet bulb, and 44.6°F inlet water.
    (3) High Temp Water Capacity: At 105.1°F dry bulb, 70.9°F wet bulb, with 53.6°F inlet and 68°F outlet water.

    All specifications are subject to change without prior notice.
