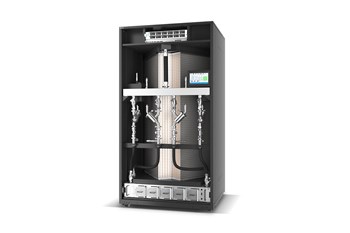

L2A CDU, GoCool-150

Features & Benefits

Superior Heat Dissipation

• Excellent thermal resistance that significantly outperforms air cooling
• Maximizes cooling density, providing more efficient heat removal

Cost Efficient

• Ultra-efficient power usage: lower power consumption under 7.5%
• Seamless integration: no raised floors or facility piping needed; simplifies layout and adapts easily to specific requirements
• Optimizes space utilization: increases compute density and maximizes space without facility modifications
• Utilizes existing infrastructure: Room Cooling (CRAH), hot air containment and racks

Robust Reliability

• Redundant design for key components: pump, fan, sensor and controller
• Assures coolant quality with integrated 25-micron filter
• Hot-swappable pump and fan enable swift onsite replacement

Specifications

1. Model: GoCool-150
2. Nominal Cooling Capacity: 150 kW

3. ---

4. Deployment
5. Ambient Temperature: 35°C (95°F)
6. Airflow Rate: 17,658 CFM
7. oolant Supply Temperature: 45°C (113°F)
8. Coolant Flow Rate: 225 LPM
9. Coolant Supply Pressure: 25 psi
10. Approach Temperature: 10°C (18°F)
11. Coolant Feed Location: Front

12. ---

13. Power Supply
14. Nominal Power Supply Voltage: 380/400/415/480 Vac, 3W+N+PE
15. Operating Voltage Range: 346-480 Vac
16. Frequency: 50/60 Hz
17. Maximum Power Consumption: 18 kW
18. Dual Power Feed: Standard

19. ---

20. Physical
21. Dimensions (W x D x H): 1200 x 1066 x 2300 mm (47.3 x 42.0 x 90.6 in)
22. Net Weight: 1200 kg (2645.5 lbs)

23. ---

24. Communication Interface
25. Display: LCD touchscreen
26. Protocols: Modbus RTU

27. ---

28. Environment
29. Operating Temperature: 10 to 35°C (50 to 95°F)
30. Humidity: 20-80%

31. ---

32. Conformance
33. Safety: UL

34. ---

35. Features
36. Standard
    ▪️ Leak Detection
    ▪️ Networking Remote Monitoring/Control
    ▪️ Individual Fan Fail Sensing
    ▪️ Variable DC Fans

37. ---

38. All specifications are subject to change without prior notice.
