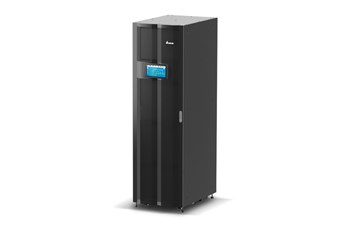

DPH Series 15 - 60/105 kVA (208 V)

Features & Benefits

High Integration and Space Saving

• Fully integrated in one 42U cabinet with power supply, battery runtime, static transfer switch and input/output/bypass breakers

Ultimate Availability

• Fully modularized design and hot-swappable modules for easy deployment and maintenance

• Redundant aux power and controller design

• Dual CAN bus to ensure the inherent reliability on signal level

• Battery module’s LED fuse warning indicators can alert operators in the event of a blown fuse

Excellent Power Performance

• Industry-leading high power density of power module: 15 kVA/kW in 2U height

• AC-AC conversion efficiency 95% and ECO mode efficiency up to 98.5% with Energy Star 2.0 certification

• Green mode for effective utilization

High Manageability

• Environment Management System integration (optional)

• Power consumption trend calculation

• Inbuilt Ethernet and RS485 communication interface

• User-friendly 10” touch panel

Applications

Specifications

1. Model
2. DPH-60K-LV / DPH-105K-LV

3. ---

4. Power Rating
5. DPH-60K-LV
   15, 30, 45, 60 kVA/kW
6. DPH-105K-LV
   15, 30, 45, 60, 75, 90, 105 kVA/kW

7. ---

8. Maximum Power Module Quantity
9. DPH-60K-LV: 4+1 redundancy
   DPH-105K-LV: 7+1 redundancy

10. ---

11. Maximum Battery Module Quantity (Inbuilt)
12. DPH-60K-LV: 16 pcs (4 strings)
    DPH-105K-LV: N/A

13. ---

14. Input
15. Nominal Voltage: 208/120 Vac, 220/127 Vac (3 phase, 4-wire +G)
16. Voltage Range: 166~253 Vac (full load)
17. iTHD
    < 5% (non-linear)
    < 3% (linear) *
18. Power Factor: > 0.99
19. Frequency: 40~70 Hz

20. ---

21. Output
22. Output Voltage: 208/120 Vac, 220/127 Vac (3 phase, 4-wire +G)
23. Voltage Regulation: ± 1% (static)
24. Output Power Factor: Unity
25. THDv
    < 2% (Linear)
    < 5% (Non-linear)
26. AC-AC Efficiency: 95%
    ECO Efficiency: Up to 98.5%
27. Overload Capacity
    ≤ 125%: 10 minutes
    ≤ 150%: 1 minute
    > 150%: 1 second

28. ---

29. Battery
30. Nominal Voltage: ± 168 Vdc (± 14 pcs)
31. Charge Voltage: ± 190 Vdc (adjustable from 182 Vdc to 196 Vdc)
32. Charge Current: 6 A Max. per power module

33. ---

34. Physical
35. Dimension (W x D x H) : 23.62 x 33.46 x 78.74 in (600 x 850 x 2000 mm)
36. Weight - UPS System
    DPH-60K-LV: 562.2 lbs (255 kg)
    DPH-105K-LV: 619.5 lbs (281 kg)
37. Weight - Power Module: 46.3 lbs (21 kg / 1 pc)
38. Weight - Battery Module: 51.8 lbs (23.5 kg / 1 pc, 1 battery module=9Ah battery x 7pcs)

39. ---

40. Environment
41. Operating Temperature: 32 to 104°F (0 to 40°C)
42. Storage Temperature: -13 to 167°F (-25 to 75°C)
43. Relative Humidity: 5~95% non-condensing
44. Audible Noise: < 68 dBA **

45. ---

46. Others
47. Compliance: UL 1778, FCC Class A, Energy Start 2.0
48. Parallel: Maximum 4 units
49. Display: 10” Touch Panel
50. Communication Interface: Ethernet, RS485

51. ---

52. Modular battery cabinet
53. Dimension (W x D x H): 23.62 x 33.46 x 78.74 in (600 x 850 x 2000 mm)
54. Weight
    w/ Full Battery module : 2123.1 lbs (963 kg)
    w/o Battery module: 465.2 lbs (211 kg)
55. Maximum Number of Battery Strings: 8
56. Maximum Number of Battery Modules: 32

57. ---

58. * When input voltage total harmonic distortion input is less than 1%
    ** Measured by 1 meter of the UPS

    All specifications are subject to change without prior notice.
