BC2000 Series system controller
The BC2000 system controller is a state-of-the-art unit that provides alarm notification, complete system control, and advanced battery monitoring – with a simple, easy-to-use interface.
As with all Eltek controllers, the BC2000 controller lowers overall network power management costs by putting the power of real-time information at your fingertips.
The BC2000 controller is used in Eltek’s compact and integrated systems.A simple “plug-and-play” design makes it easy to install or replace an existing controller. Fail-safe architecture ensures that power systems continue to operate if the controller is disconnected.

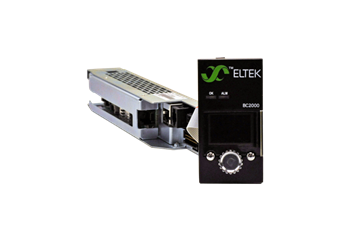

System control and monitoring can be executed through both local and remote interfaces. Local interface consists of a control panel with a back-lit Organic LED display, two soft buttons, and a scroll knob. Remote monitoring and control is possible via an Ethernet port and supports HTTP, SNMP, TELNET, and TL1 protocols.
Battery management provides such features as float voltage control, battery current limit, battery boost (equalizing), battery discharge tests, thermal runaway protection, thermal compensation, and low-voltage disconnect monitoring.
System alarm monitoring consists of six form-C relays, audible alarm alerts, and four peripheral input ports – all fully configurable.
An I2C expansion port is provided for multi-shelf control. A controlled area network (CAN) bus permits expansion with peripheral devices.
