BDCBB - BDFB -48Vdc Power Distribution Bay

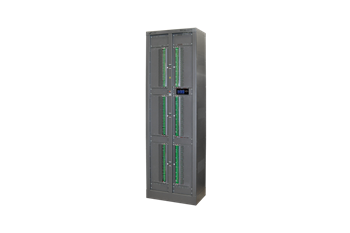

The Eltek BDCBB/BDFB can be equipped as a single bus bay or offer up to six load busses – depending upon the desired configuration. The bay is designed to provide 800 amps per feed at –48V, and has a maximum total current capacity of 4800 amps.

The distribution bay is equipped with the industry-leading Smartpack2 Touch controller, which displays system load voltage and current on each bus. In addition to standard alarms, the Smartpack2 controller’s extensive programing capabilities allow for custom alarm threshold values, alarm grouping and more through both remote and local access.

The bay can be ordered either with or without an internal ground bus assembly. Optional external ground bars are also available. It is designed for top- or bottom-feed cabling.

Each bay includes a standard cable management package.

Optional rear-facing DC load cabling available.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Advanced-function Smartpack2 Touch controller
  • Cable management package
  • Optional alarm battery supply (ABS) circuit
  • Fuse and/or circuit breaker distribution:
  • Upgradeable in the field
  • 15” deep, 7’ tall with optional 2’ extensions
  • 26” and 34”-wide bay options
  • Either two, four, or six 800 amp a/b input feeds, each equipped with 1000 amp shunts
  • Two 750 kcmil terminations per feed
  • Optional increase to four 750 kcmil terminations per feed
  • Audible alarm with user-configurable on/off feature
  • Removable side panels
  • NEBS level 3
  • CSA/VDE 60950-1, 2nd edition



Specifications
  1. Input
  2. Current (maximum): 4800 ADC
  3. Voltage DC (operating range): 40 - 58 VDC
  4. Max Input DC Voltage: 58 VDC
  6. Electrical
  7. MTBF: 1300000 h
  9. System Connection
  10. Voltage: 2 to 7
  11. Current: 2 to 6
  12. Battery: N/A
  13. Load: N/A
  15. Output
  16. Quantity 5 Form-C Dry Contact (NO-C-NC) Max 75V
  18. Ports
  19. Available Ports: Ethernet
  21. Display
  22. Size: 3.2"
  23. Resolution: QVGA 32k color TFT
  25. DC Load Distribution
  26. Breaker Positions up to: 144
  27. Breaker Rating up to: 250 A
  28. LVLD: No
  29. 24-position Bullet Breaker Panel: Optional 2 - 4- 6 Panel Configurations Available
  31. Other
  32. Operating Temperature: -5 to 30°C
  33. Storing Temperature: -40 to 70°C
  34. Mounting Type: Floor
  36. Dimensions
  37. Dimensions (W x H x D): 15 x 84 x 26 inch
  38. Weight: 375 lbs
  40. Certifications
  41. UL: UL 60950-1
  42. Telcordia Approvals: NEBS GR1089-CORE; NEBS GR63 CORE Zone 4
  44. Software Functionality
  45. Remote Monitoring:
    DHCP DHCPv6 SNMP v1, v2c and v3 MODBUS TCP/RTU Slave Modem Call-back & SMS Alarm for GSM modems pComm (Windows Config/Monitoring Tool) via Modem & IP IPv4 IPv6 (static-link) IPv6 (stateless autoconfig) IPv6 (statefull autoconfig) - DHCPv6 SNTP - clock syncronizing SMTP/email custom reports as .csv attached SMTP Secure RADIUS (single-sign on) FTP - file transfeer (SW updates, log's download, etc) FTPS - FTP secure UDP pComm for PowerSuite (Windows Config/Monitoring Tool) HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen) HTTPS (TLS enqrypted web interface)
