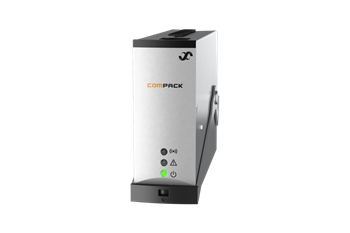

Compack

Features & Benefits

Specifications

1. Input
2. Voltage DC (operating range): 9 - 75 VDC

3. ---

4. Electrical
5. Power Consumption: 3 W
6. MTBF: 600000 h

7. ---

8. System Connections
9. Voltage: 1
10. Current: 1
11. Battery: (3) midpoint

12. ---

13. Output
14. Form-C Dry Contact (NO-C-NC) Max 75V/2A/60W

15. ---

16. Configurable Inputs
17. Number of Configurable Inputs: 3
18. Digital Configurations: Open/Closed
19. Number of Analog Configurations: 3
20. Analog Configurations
    - Temperature Analog: 0-75V
    - Battery Symmetry: 0-75V

21. ---

22. LVD
23. Batteries: 1
24. Loads: 1

25. ---

26. Port
27. Available Ports: Ethernet

28. ---

29. Other
30. Operating Temperature: -4 to 140°F
31. Storing Temperature: -40 to 158°F

32. ---

33. Dimensions
34. Dimensions (W x H x D): 1.2 x 2.95 x 4.52 inch [30 x 75 x 115 mm]
35. Weight: 0.53 lbs

36. ---

37. Design Standards
38. Ingress Protection (IP): 20

39. ---

40. Software Funcionality
41. Remote Monitoring:
    DHCP SNMP v1, v2c and v3 MODBUS TCP Slave IPv4 IPv6 (static-link) IPv6 (stateless autoconfig) IPv6 (statefull autoconfig) - DHCPv6 SNTP - clock syncronizing SMTP/email custom reports as .csv attached SMTP Secure RADIUS (single-sign on) FTP - file transfeer (SW updates, log's download, etc) FTPS - FTP secure UDP pComm for PowerSuite (Windows Config/Monitoring Tool) HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen) HTTPS (TLS enqrypted web interface)
42. Rectifier Functions/Monitoring:
    Efficiency Manager HE Priority Slow/Fast/Li-Ion voltage ramp-up Power Ramp Up Adjustable Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Start-Up delay Rectifier Current Monitoring (2-level Alarm) Rectifier Error Monitoring (2-level Alarm) Rectifier Communication Error Monitoring (2-level Alarm) Rectifier Usage Monitorting (2-level Alarm) Rectifier Usage BT Spec Monitorting (2-level Alarm) Rectifier Current Share Error Monitorting (2-level Alarm) Rectifier Input Air Temperature Highest Monitorting (2-level Alarm) Rectifier Qty with Low Mains Monitorting (2-level Alarm)
43. Rectiverter Functions/Monitoring:
    Adjustable output frequency Adjustable output AC voltage Adjustable frequency hold-in range/hysteresis for inverter mode Adjustable DC Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Rectiverter AC Output Voltage Phase 1, 2 & 3 Monitoring (4-level Alarm) Rectiverter AC Output Frequency Monitoring (4-level Alarm) Rectiverter AC Output Current Phase 1, 2 & 3 Monitoring (2-level Alarm) Rectiverter DC Output Current Total Monitoring (2-level Alarm) Rectiverter Error Monitoring (2-level Alarm) Rectiverter AC Current Share Error Phase1, 2 & 3 Monitoring (2-level Alarm) Rectiverter AC Capacity Monitoring (2-level Alarm) Rectiverter DC Capacity Monitoring (2-level Alarm) Rectiverter Temperature (4-level Alarm) Rectiverter Communication Error Monitoring (2-level Alarm)
44. Battery Management/Monitoring:
    Temperature Compensation Symmetry - Midpoint measurement 12V, 24V Symmetry - Block measurement 6V, 12V, 24V Auto Boost Charge Interval Boost Charge Follow-up Boost Charge Equalize Charge, manual & inerval Temperature Compensation during Boost & Equalize Charge Battery Discharge Health (SoH) testing - normal, based on discharge batt. Spec. Battery Discharge Health (SoH) testing - simple, based on backup time requirement Battery Discharge Health (SoH) testing - manual, interval, or alternate scheme Battery Test logging Battery DoD Cycle logging Battery Cycle counter logging Battery Run time logging Battery LifeTime Prediction based on temp ranges Analog Battery Float charge regulation based on input voltage signal Battery Voltage Monitoring (4-level alarm) Battery Current Monitoring (4-level alarm) Highest of multiple battery temperature Monitoring (4-level alarm) Individual Battery Temperatures (4-level alarm) Battery SoC Monitoring (2-level Alarm), % or Ah Accumulated Ah Charged/Discharged Monitoring (2-level alarm) Failed Battery Test Monitoring (1-level alarm)
45. Mains/Grid Monitoring:
    Phase Failure Monitoring (2-level Alarm) Phase Voltage Monitoring (4-level Alarm)
46. Load Management/Monitoring:
    LVLD Coldstart LVLD Load Fuse Monitoring (1-level alarm) Load Current Monitoring (2- level alarm)
47. Programmable Logic:
    OR function of multiple alarms/events AND function of multiple alarms/events Inversion of logical signals Task Scheduler (hourly, daily, weekly, monthly) of any commands/events Alarm Grouping
48. Available Logs:
    Energy Logging (mains, rectifier, rectiverter, battery, load) - hourly, dailiy, weekly Data Logging (10 parameters, various trigger intervals and event triggers) Account login log Change log Inventory Export
49. Various Controllers:
    Security setup (open/close UDP/TCP ports) User Account Setup Programmable Buzzer Remote Software Upgrade - maincontroller over IP Programmable Viritual Inputs XML Configurations - full parameter flexibility

50. ---
