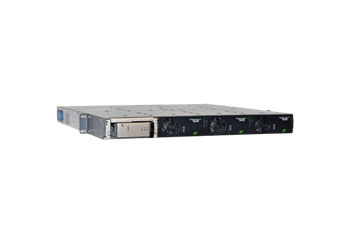

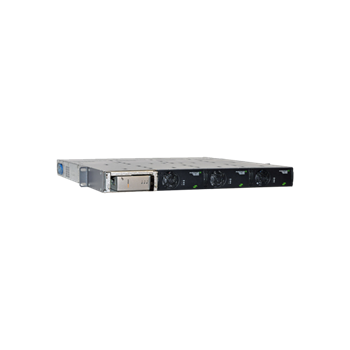

DC/DC Converter Power System Flatpack2 USA

The Flatpack2 DC/DC Converter System is a High Efficiency power solution with an optimal footprint where space is limited – both in typical racks and some cabinet installations.

The Flatpack2 DC/DC system delivers DC power solutions to telecommunications infrastructures where dual voltage 24/48V or 48/24V are required to power new and legacy equipment from a primary DC voltage source.

At 18.5 deep, the Flatpack2 DC/DC system is designed for use in 19 ANSI/EIA 310-D racks and cabinets. Extender brackets are included for use in 23 racks.Powered by Flatpack2 HE DC/DC converter modules, efficiency exceeds 93% at 48V DC output.



Product Introduction

Features & Benefits
  • COMPACT DESIGN
    Small overall dimensions are ideal for rack applications.
  • REAR ACCESS CONNECTIONS
    DC loads are rear access. All cabling is horizontal to reduce vertical space.
  • HEAT MANAGEMENT
    Flatpack2 converter module features front-to-back airflow and chassis-integrated heat-sinks, supplementing high-efficiency energy conversion with excellent heat management.
  • COST-EFFICIENCY
    A true plug-and-play system, the Flatpack2 DC/DC Converter reduces both time-to-install and overall costs.



Specifications
  1. Input
  2. Current (maximum): 600 ADC
  3. Voltage DC (operating range): 20 - 75 VDC
  4. Max Input DC Voltage: 75 VDC
  6. DC Output
  7. Max Power: 1350 W
  8. Voltage (adjustable range): 24 - 58,5 VDC
  9. Current (maximum): 400 ADC
  10. Max Voltage: 58,5 VDC
  11. Max Power: 10,8 kW
  13. Other
  14. Cooling: Single fan
  15. Efficiency: 93,8 %
  16. Operating Temperature: -40 - 75 °C
  17. Storing Temperature: -40 - 85 °C
  18. Mounting Type: Rack 19”
  20. Dimensions
  21. Dimensions (W x H x D): 19 x 1,75 x 18,8 inch
  22. Weight: 24 lbs
  24. Certifications
  25. UL: UL 60950-1
  26. Telcordia Approvals: NEBS GR1089-CORE;NEBS GR63 CORE Zone 4
