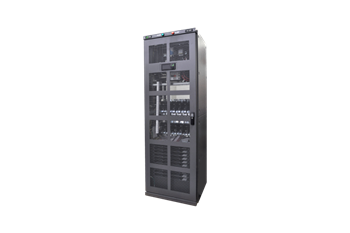

DC/DC Power System 380/48V USA

Integrating state-of-the-art, high efficiency, switch-mode rectifier technology with Eltek’s feature-rich Smartpack2 control and monitoring unit, the high-performance EcoTower system provides 380Vdc – 48Vdc power conversion for Data Centers using Flatpack2 HE DC/DC Converters. The power system offers configurations up to 60kW.

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

Versatility
Scalable
High Efficiency
Safety
Rugged design Five 4-position converter shelves
Twenty 3000W converters max
Redundant 250A input breakers
Internal DC bus capability 1200A
Converter bay delivers up to 1200A
Input SPD
-48V Load distribution provided
Based upon distributed Smartpack2 control system
Interactive display on main bay.

Specifications

Input
Current (maximum): 246 ADC
Voltage DC (operating range): 260 - 400 VDC
Max Input DC Voltage: 400 VDC
DC Output
Max Power: 3000 W
Voltage (adjustable range): 50 - 55 VDC
Current (maximum): 1200 ADC
Max Voltage: 55 VDC
Max Power: 60 kW
DC Load Distribution
Breaker Positions Up to: 72
Breaker Rating Up to: 600 A
LVLD: No
24-position Bullet Breaker Panel: Maximum 4 panels allowed
11-position BG Module Panel: Maximum 2 panels allowed
GJ Breaker/TPL Fuse Panel: Maximum 2 panels allowed
Other
Cooling: Single fan
Efficiency: 98,2 %
Operating Temperature: -40 - 40 °C
Storing Temperature: -40 - 70 °C
Mounting Type: Floor
Dimensions
Dimensions (W x H x D): 26 x 84 x 26,5 inch
Weight: 500 lbs
Certifications
UL: UL 60950-1
Telcordia Approvals: NEBS GR63 CORE Zone 4
