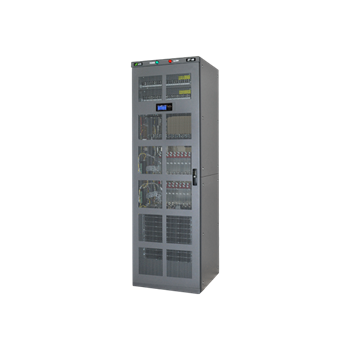

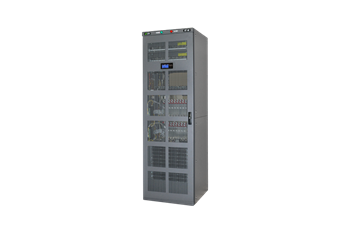

EcoTower 2

Integrating state-of-the-art, high efficiency, switch-mode rectifier technology with Eltek’s feature-rich Smartpack2 control and Smartpack2 Touch monitoring unit, the high-performance EcoTower 2system can be configured to use either single-phase Flatpack2 HE or three-phase DPM-6000 rectifiers.

The EcoTower 2 delivers up to 2400A and can be equipped with as many as seven DC distribution panels in a single cabinet.



Product Introduction

Features & Benefits
  • Advanced-function Smartpack2 Touch controller
  • Uses either Flatpack2 HE or Powerpack rectifiers
  • Up to 2400 Amps DC Output
  • Front-access design
  • Lightweight module components
  • Cable management bar
  • Internal return bus
  • Eight battery connections Low Voltage Load and Battery Disconnects available
  • Secondary distribution cabinet available



Specifications
  1. Input
  2. Voltage AC (operating range): 85 - 300 VAC
  3. Max Input AC Voltage: 305 VAC
  4. Mains Configuration: 230 VAC Single phase; 230 VAC 3 phase (Δ); 230/400 VAC 3 phase (Y)
  6. DC Output
  7. Max Power: 120000 W
  8. Voltage (adjustable range): 43,5 - 58 VDC
  9. Current (maximum): 2400 ADC
  10. Max Voltage: 58 VDC
  12. LVD
  13. Batteries: 1
  14. Loads: 2
  16. Ports
  17. Available Ports: Ethernet;RS-282;RS-485
  19. Battery Distribution
  20. Breaker Positions Up to: 8
  21. Breaker Rating Up to: 800 A
  22. LVBD: Yes
  24. DC Load Distribution
  25. Breaker Positions Up to: 182
  26. Breaker Rating Up to: 800 A
  27. LVLD: Yes
  28. GJ Breaker/TPL Fuse Panel:
    The system may be equipped with a maximum of three panels.
    Refer to the Product Guide for configuration details.
  29. Bulk Connections:
    The bulk battery panel is provided with each system, equipped with optional LVD.
  31. Other
  32. Operating Temperature: -40 - 55 °C
  33. Storing Temperature: -40 - 75 °C
  34. Mounting Type: Floor
  36. Dimensions
  37. Dimensions (W x H x D): 26 x 84 x 24,8 inch
  38. Weight: 500 lbs
  40. Certifications
  41. UL: UL 60950-1
  42. Telcordia Approvals: NEBS GR63 CORE Zone 5
