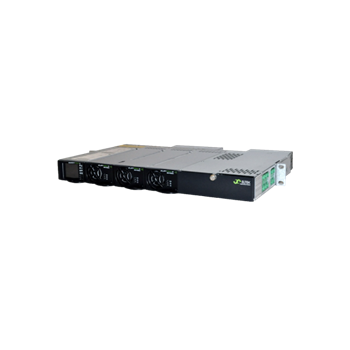

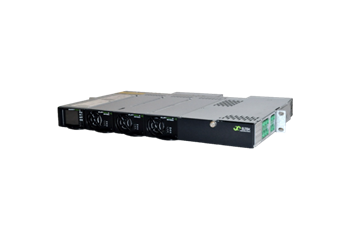

Flatpack S 1U - Intrepid

Increasing network speed demands flexible and expandable DC power solutions. Due to its small size, high efficiency, reliability and wide range of communication, the Flatpack S Intrepid Series Systems are the key for future needs. The shallow depth makes the system suitable for most cabinets and thereby excellent as a replacement unit.

The compact size of the system makes it perfect for use in 19 or 23 wide racks and cabinets. Built as a plug-and-play system, the Flatpack S 1U reduces installation time and enables cost-effective deployment.



Product Introduction

Features & Benefits
  • COMPACT DESIGN
    Small overall dimensions are ideal for both rack and cabinet applications.
  • SIDE / REAR ACCESS CONNECTIONS
    DC loads and controller connections (alarms, communication, etc.) are front accessible. The AC connections and battery connections are rear.
  • DIGITAL CONTROLLER
    The Smartpack S digital controller system provides comprehensive monitoring and regulation by utilizing a variety of specialized data collection.
  • HEAT MANAGEMENT
    Flatpack S modules feature front-to-back airflow and chassis-integrated heat-sinks, supplementing high-efficiency energy conversion with excellent heat management.
  • COST-EFFICIENCY
    A true plug-and-play system, the Flatpack S 1U system reduces both time to install and overall costs.



Specifications
  1. Input
  2. Voltage AC (operating range): 100 - 250 VAC
  3. Voltage DC (operating range): 100 - 250 VDC
  4. Max Input AC Voltage: 250 VAC
  5. Max Input DC Voltage: 57,7 VDC
  6. Mains Configuration: 230 VAC Single phase; 120V/208V
  8. DC Output
  9. Max Power: 1800 W
  10. Voltage (adjustable range): 47 - 57,7 VDC
  11. Current (maximum): 80 ADC
  12. Max Voltage: 57,7 VDC
  13. Max Power: 5,4 kW
  15. Battery Distribution
  16. Breaker Positions Up to: 2
  17. Breaker Rating Up to: 100 A
  18. LVBD: Yes
  20. DC Load Distribution
  21. Breaker Positions Up to: 4
  22. Breaker Rating Up to: 100 A
  23. Available GMT Fuses: 10
  25. Other
  26. Cooling: Single fan
  27. Operating Temperature: -40 - 65 °C
  28. Storing Temperature: -40 - 70 °C
  29. Mounting Type: Rack 19”
  31. Dimensions
  32. Dimensions (W x H x D): 19 x 1,75 x 11,875 inch
  33. Weight: 12 lbs
  35. Certifications
  36. UL: UL 60950-1
  37. Telcordia Approvals: NEBS GR1089-CORE;NEBS GR63 CORE Zone 4;NEBS GR3108-CORE
