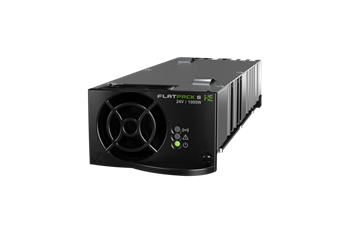

Flatpack S 24V/1000W HE

Compact and Reliable Rectifier for Rail and Power Utilities Applications

Applications in these markets demand state of the art, reliable and safe DC power systems. Flatpack S delivers an industry leading power density in its segment, many safety functions, wide operating temperature range and superb reliability in its small 217mm deep housing.

Used in the 3U rack with Smartpack S controller, the Flatpack S rectifiers cover 2 to 8kW applications using a minimum of space, less than 18 liters, and low heat dissipation.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Small
  • Short
  • Power dense, 26 W/inch³
  • High efficiency
  • OR-ing protection on output
  • Hot pluggable
  • Voltage keying



Specifications
  1. Input
  2. Voltage AC (operating range): 85 - 305 VAC
  3. Voltage DC (operating range): 85 - 300 VDC
  5. DC Output
  6. Max Power: 1000 W
  7. Voltage (adjustable range): 21.5 - 28 VDC
  8. Current (maximum): 28 ADC
  9. Max Voltage: 28 VDC
  11. Other
  12. Cooling: Single fan
  13. Efficiency: 92.5%
  14. Operating Temperature: -45 to 185°F
  16. Dimensions
  17. Dimensions (W x H x D): 2.83 x 1.63 x 8.54 inch [72 x 41.5 x 217 mm]
  18. Weight: 1.87 lbs
  20. Design Standards
  21. Ingress Protection (IP): 20
