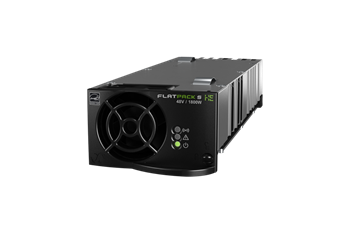

Flatpack S 48V/1800W HE

Compact HE Rectifiers for Small to Medium Telecom Applications

The Flatpack S rectifiers incorporate telecom specifications, high efficiency, OR-ing protection on output and high power in a small, 217 mm deep box.

Used in the 1U high, 2 or 3 rectifier positions power rack with Smartpack S controller and battery and load distributions, the Flatpack S rectifiers cover 2 to 5.4kW applications using a minimum of space, less than 6 liters, and low heat dissipation.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Small
  • Short
  • Power density - 47 W/inch³
  • High efficiency
  • OR-ing protection on output
  • Hot pluggable
  • Voltage and power keying



Specifications
  1. Input
  2. Voltage AC (operating range): 85 - 305 VAC
  3. Voltage DC (operating range): 85 - 250 VDC
  5. DC Output
  6. Max Power: 1800 W
  7. Voltage (adjustable range): 43.5 - 57.6 VDC
  8. Current (maximum): 37.5 ADC
  9. Max Voltage: 57.6 VDC
  11. Other
  12. Cooling: Single fan
  13. Efficiency: 95.8%
  14. Operating Temperature: -45 to 185°F
  16. Dimensions
  17. Dimensions (W x H x D): 2.83 x 1.63 x 8.54 inch [72 x 41.5 x 217 mm]
  18. Weight: 1.87 lbs
  20. Design Standards
  21. Ingress Protection (IP): 20
