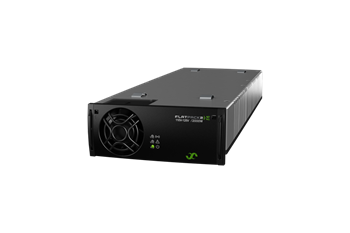

Flatpack2 110-120V/20A HE

Reliable High Efficiency Rectifier for Industrial Applications

Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages.

Datasheet Inquiry

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

Proven reliability
High power density
Application flexibility - 2 kW to multicabinet installations
Accepts DC input (DC/DC converter)
Global compliance (CE, UL)
Marine &amp
Offshore certifications
Digital controllers

Specifications

Input
Voltage AC (operating range): 85 - 305 VAC
DC Output
Max Power: 3025 W
Voltage (adjustable range): 90-151.25 VDC
Current (maximum): 20 A
Max Voltage: 151.25 V
Other
Cooling: Single fan
Efficiency: 94%
Operating Temperature: -40 to 167°F
Dimensions
Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
Weight: 4.3 lbs
Design Standards
Ingress Protection (IP): 20
