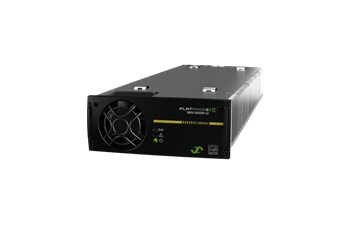

Flatpack2 380V/3000W HE

HE Rectifier for 380 Vdc in Data Centers

The Flatpack2 380V/3000W HE rectifier has high efficiency, OR-ing protection on output and high output power. Distribute pure battery backup DC voltage with a minimum of loss. Remove the low reliability DC-AC step in the central backup power system and maximize its reliability and efficiency.

Stack cabinets with up to 72 rectifiers to build large power systems monitored by the Smartpack2 controller.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Power density - 33 W/inches³
  • High efficiency – 96.2%
  • OR-ing protection on output
  • Hot pluggable – MTTR 5 min



Specifications
  1. Input
  2. Voltage AC (operating range): 85 - 305 VAC
  4. DC Output
  5. Max Power: 3000 W
  6. Voltage (adjustable range): 300 - 400 VDC
  7. Current (maximum): 9 ADC
  8. Max Voltage: 400 VDC
  10. Other
  11. Cooling: Single fan
  12. Efficiency: 96.2%
  13. Operating Temperature: -40 to 167°F
  15. Dimensions
  16. Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
  17. Weight: 4.3 lbs
  19. Design Standards
  20. Ingress Protection (IP): 20
