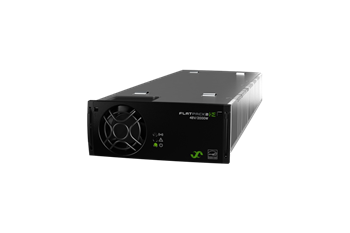

Flatpack2 48V/2000W HE

The Most Reliable High Efficieny Rectifier in The Industry

The combination of innovative design, efficiency and reliability makes the Flatpack2 HE stand out.

Increasing network speed demands flexible and expandable DC power solutions. The Flatpack2 HE rectifiers are your key building blocks for future needs.

With an efficiency up to 96.5%, the losses have been reduced by 50% compared to the current industry standard. In a global perspective, considering the high energy consumption in the telecom industry, this technology breakthrough is not only reducing operational cost for the operators, but it can also have a significant environmental impact.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Power dense, up to 33 W/inch³
  • High efficiency
  • Proven reliability
  • Application flexibility 2 kW - 3 MW
  • Global compliance



Specifications
  1. Input
  2. Voltage AC (operating range): 85 - 305 VAC
  3. Voltage DC (operating range): 85 - 275 VDC

  4. DC Output
  5. Max Power: 2000 W
  6. Voltage (adjustable range): 43.5 - 57.6 VDC
  7. Current (maximum): 41.7 ADC
  8. Max Voltage: 57.6 VDC

  9. Other
  10. Cooling: Single fan
  11. Efficiency: 96.5%
  12. Operating Temperature: -40 to 167°F

  13. Dimensions
  14. Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
  15. Weight: 4.3 lbs

  16. Design Standards
  17. Ingress Protection (IP): 20

  18. Certifications
  19. Marine: DNV 2.4 Valid for part no. 241115.105M
