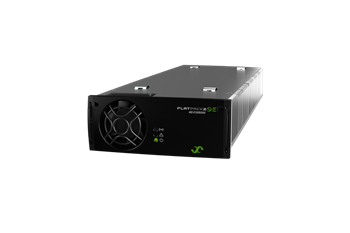

Flatpack2 48V/3000W SHE

Super High Efficiency (SHE) Rectifier for Telecom Applications

The Flatpack2 48V/3000W SHE is contributing to setting the new industry standard for efficiency in the DC power market.

With an efficiency of 97.8% the Super High Efficiency (SHE) is a premium rectifier particularly suitable for markets and applications where the energy is costly.

In grid connected applications the payback time is down to 2 years compared to standard HE rectifiers, and in hybrid applications even faster.

The Flatpack2 48V/3000W SHE is fully compatible with Flatpack2 and Flatpack2 HE systems andcan replace any 3kW Flatpack2 module.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Super high efficiency – 97.8%
  • High power density – 33 W/inch³
  • Compatible with existing systems
  • Global compliance
  • Hot pluggable



Specifications
  1. Input
  2. Voltage AC (operating range): 85 - 264 VAC
  4. DC Output
  5. Max Power: 3000 W
  6. Voltage (adjustable range): 43.2 - 57.6 VDC
  7. Current (maximum): 62.5 ADC
  8. Max Voltage: 57.6 VDC
  10. Other
  11. Cooling: Single fan
  12. Efficiency: 97.8%
  13. Operating Temperature: -13 to 167°F
  15. Dimensions
  16. Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
  17. Weight: 4.52 lbs
  19. Design Standards
  20. Ingress Protection (IP): 20
