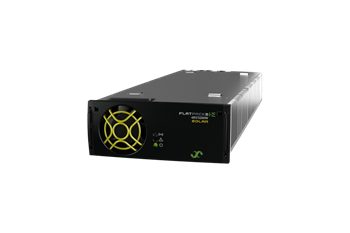

Flatpack2 48V/3200W HE Solar

High Efficiency Solar Charger for Telecom Applications

With the MPPT algorithm ensuring close to 100% panel utilization and an efficiency above 97%, the galvanic isolated solar charger sets new standards for renewable power in telecom.

Datasheet Inquiry

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

High efficiency – 97%
MPPT – Maximum Power Point Tracking
Ground fault detection of PV string
Supports high input voltage- up to 430V = low losses/small cables
Telecom specifications
Fully integrated in Eltek control system
Global compliance
Voltage keying

Specifications

Input
Voltage DC (operating range): 85 - 430 VDC
DC Output
Max Power: 3200 W
Voltage (adjustable range): 43.5 - 57.6 VDC
Current (maximum): 66.7 ADC
Max Voltage: 57.6 VDC
DC Load Dstribution
LVLD: Yes
Other
Cooling: Single fan
Efficiency: 97%
Operating Temperature: -40 to 167°F
Dimensions
Dimensions (W x H x D): 4.29 x 1.63 x 12.76 inch [109 x 41 x 324 mm]
Mounting Dimensions: Width 19" / Height 1U / Depth 324 mm
Design Standards
Ingress Protection (IP): 20
