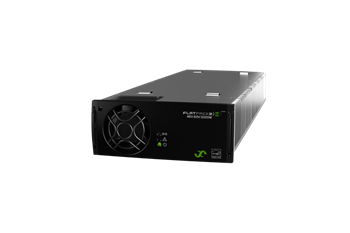

Flatpack2 48V-60V/2000W HE

Reliable high efficiency rectifier for industrial applications.

Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages. The Flatpack2 48V-60V/2000W HE is a cost efficient rectifier for 48V and 60V lead acid battery systems as well as 48V NiCad.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • High efficiency – 96.2%
  • Proven reliability
  • High power density
  • Application flexibility - 2 kW to multicabinet installations
  • Modular design - MTTR and LT5mins
  • AcceptsDC input (DC/DC converter)
  • Global compliance (CE, UL, NEBS)
  • Marineand offshore certifications



Specifications
  1. Input
  2. Voltage AC (operating range): 85 - 300 VAC
  3. Voltage DC (operating range): 85 - 300 VDC
  5. DC Output
  6. Max Power: 2000 W
  7. Voltage (adjustable range): 39.9 - 72 VDC
  8. Current (maximum): 41.7 ADC
  9. Max Voltage: 72 VDC
  11. Other
  12. Cooling: Single fan
  13. Efficiency: 96.2%
  14. Operating Temperature: -40 to 167°F
  16. Dimensions
  17. Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
  18. Weight: 4.3 lbs
  20. Certifications
  21. Marine: DNV 2.4 Valid for part no. 241115.705M
