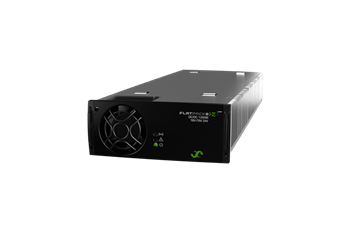

Flatpack2 DC/DC 18-75V/24V, 1350W

Wide Input DC/DC Converters

The Flatpack2 DC/DC converters add new flexibility to the Flatpack2 power systems. Secondary 24 Vdc or 48 Vdc outputs can be provided from the main voltage battery. Application requiring galvanic isolation between the loads can now also be addressed.

The galvanic isolated CAN bus can be connected to a supplying Eltek power system’s control system allowing monitor and control of the DC/DC converters without adding a separate controller.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Wide input range
  • OR-ing protection on output
  • Boost mode
  • Quick trip pulse
  • High EfficiencyVoltage keyingSeamlessly integrated in control system



Specifications
  1. Input
  2. Voltage DC (operating range): 20 - 75 VDC
  4. DC Output
  5. Max Power: 1350 W
  6. Voltage (adjustable range): 24 - 28 VDC
  7. Current (maximum): 56  ADC
  8. Max Voltage: 28 VDC
  10. Other
  11. Cooling: Single fan
  12. Efficiency: 91.7%
  13. Operating Temperature: -40 to 167°F
  15. Dimensions
  16. Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
  17. Weight: 4.3 lbs
  19. Design Standards
  20. Ingress Protection (IP): 20
