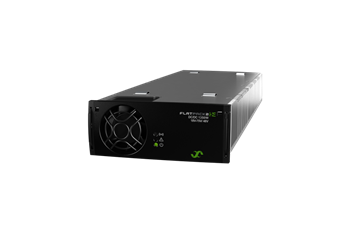

Flatpack2 DC/DC 18-75V/48V, 1350W

Wide Input DC/DC Converters

The Flatpack2 DC/DC converters add new flexibility to the Flatpack2 power systems. Secondary 24 Vdc or 48 Vdc outputs can be provided from the main voltage battery. Application requiring galvanic isolation between the loads can now also be addressed.

The galvanic isolated CAN bus can be connected to a supplying Eltek power system’s control system allowing monitor and control of the DC/DC converters without adding a separate controller.

Datasheet Inquiry

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

Wide input range
OR-ing protection on output
Boost mode
Quick trip pulse
High Efficiency
Voltage keying
Seamlessly integrated in control system

Specifications

Input
Voltage DC (operating range): 20 - 75 VDC
DC Output
Max Power: 1350 W
Voltage (adjustable range): 48 - 58.5 VDC
Current (maximum): 28 ADC
Max Voltage: 58.5 VDC
Battery Distribution
LVBD: Yes
DC Load Distribution
LVLD: Yes
Other
Cooling: Single fan
Efficiency: 93.8%
Operating Temperature: -40 to 167°F
Insulation: Yes
Dimensions
Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
Weight: 4.3 lbs
Design Standards
Ingress Protection (IP): 20
