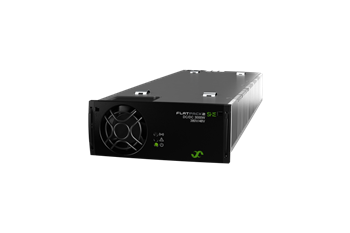

Flatpack2 DC/DC 380V/48V 3000W SHE

Super High Efficiency Converter for Data Centers

The Flatpack2 DC/DC 380/48 3000 SHE enables a high efficiency end to end DC power solution for data centers. It converts the 380 Vdc bus voltage down to 54 Vdc with an efficiency of 98.2%.

With this Flatpack2 380V to 54V converter, central 380 Vdc-UPS becomes a competitive alternative for a wider range of data centers. The advantages of DC power systems as reliability, modularity, redundancy and high end to end efficiency, can be fully utilized to ensure optimal power availability.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • High power density - 33 W/inch³
  • Super efficiency up to 98.2%
  • Modular – build as your load grows
  • Wide input range
  • OR-ing protection on output



Specifications
  1. Input
  2. Voltage DC (operating range): 260 - 400 VDC
  4. Electrical
  5. MTBF: 510000 h
  7. DC Output
  8. Max Power: 3000 W
  9. Voltage (adjustable range): 50 - 55 VDC
  10. Current (maximum): 60 ADC
  11. Max Voltage: 55 VDC
  13. Other
  14. Cooling: Single fan
  15. Efficiency: 98.2%
  16. Operating Temperature: -40 to 167°F
  18. Dimensions
  19. Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
  20. Weight: 4.3 lbs
  22. Design Standards
  23. Ingress Protection (IP): 20
