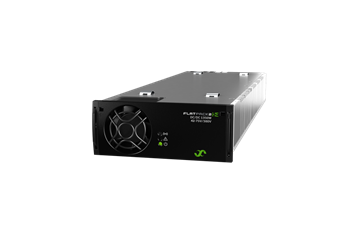

Flatpack2 DC/DC 42-75V/380V, 1350W

Central Office DC/DC Converter for 380 Vdc Distribution Systems

This Flatpack2 DC/DC converter provides a secondary 310-400 Vdc output from a main 48V or 60V battery bank. This allows for high efficient transmission of battery backed up energy to small remote sites without grid.

The galvanic isolated CAN bus can be connected to a supplying Eltek power system’s control system allowing monitor and control of the DC/DC converters without adding a separate controller.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Wide input range
  • OR-ing protection on output
  • Boost mode
  • High efficiency
  • Voltage keying
  • Seamlessly integrated in control system



Specifications
  1. Input
  2. Voltage DC (operating range): 42 - 75 VDC
  4. DC Output
  5. Max Power: 1350 W
  6. Voltage (adjustable range): 310 - 400 VDC
  7. Current (maximum): 4.5  ADC
  8. Max Voltage: 400 VDC
  10. Other
  11. Cooling: Single fan
  12. Efficiency: 94.5%
  13. Operating Temperature: -40 to 167°F
  15. Dimensions
  16. Dimensions (W x H x D): 4.29 x 1.63 x 12.78 inch [109 x 41.5 x 327 mm]
  17. Weight: 4.3 lbs
  19. Design Standards
  20. Ingress Protection (IP): 20
