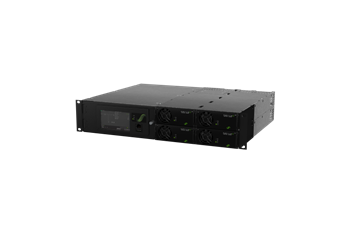

Flatpack2 Integrated 19"

The Integrated 19” 2U power supply is built around the Flatpack2 rectifier and designed for applications such as switchgear, telecom, emergency lighting and alarm systems.

Its compact design and simple installation make it a powerful 19” power supply package.

The rectifiers wide DC output range makes it suitable for parallel operation with all types of stationary batteries, including lead acid, or nickel cadmium types.

Datasheet Inquiry

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

Compact design and simple installation
85-300VAC or DC input
House up to 4 rectifier modules
24-220 Vdc systems
Bulk feed output
Graphical 3.2” TFT high contrast, high resolution color display for easy navigation in user menu
Ethernet for remote or local monitoring and control via web browser
SNMP protocol with trap, set and get on ethernet.
Email of trap alarms
Digital programmable relay outputs
Programmable multipurpose inputs (“digital inputs” or analog signals)

Specifications

Input
Max Input AC Voltage: 305 VAC
Max Input DC Voltage: 300 VDC
Mains Configuration: 230 VAC Single phase
DC Output
Current (maximum): 300 ADC
Max Voltage: 220 VDC
Max Power: 12 kW
Other
Operating Temperature: -40 to 55°C
Storing Temperature: -40 to 85°C
Dimensions
Dimensions (W x H x D): 19 x 17.01 x 3.5 inch [482 x 432 x 89 mm]
Weight: 22 lbs
Design Standards
Ingress Protection (IP): 20
