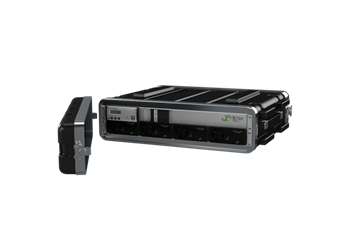

Flatpack2 Emergency Power

The portable emergency unit is designed to be used in situations with main DC power failure, system replacement, battery replacement or maintenance. Its easy handling, durability and many configuration options should make this unit a must to all service staff.

The portable emergency unit is configurable with up to four Flatpack2 24V, 48V or 60V modules and one Smartpack controller.

All housed in a hard case with removable lids in back and front for maximum protection during transport. By removing the lids you have easy access to connections, modules, MCB and controller. Individual AC input feed and one protected DC output provides multiple connection options.

Datasheet Inquiry

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

Easy to handle
Robust
Configurable with all Flatpack2 24V, 48V and 60V
Output power from 2 kW to 12 kW
Smartpack controller
Individual AC input feed
DC output busbars with lug connections
One negative DC output
Protected by 150A MCB
Extension alarm card

Specifications

Input
Max input AC Voltage: 300 VAC
Mains configuration: 230 VAC Single phase; 230 VAC 3 phase (Δ); 230/400VAC 3 phase (Y)
DC Output
Current (maximum): 250 ADC
Max Voltage: 60 VDC
Max Power: 12 kW
DC Load Distribution
Breaker Positions up to: 1
Breaker Rating up to: 150 A
Other
Operating Temperature: -40 to 70°C
Dimensions
Dimensions (W x H x D): 21 x 5.5 x 20.25 inch [530 x 140 x 510 mm]
Weight: 26.5 lbs
