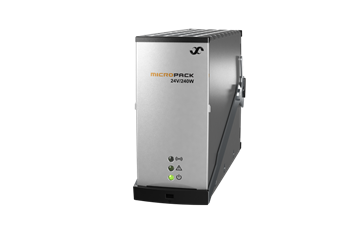

Micropack 24V/240W WOR

Compact, Full-featured DIN Rail Power Modules

The Micropack system is convection cooled, designed for less power hungry applications, but still with system functionality options to match any requirements.

Use as stand alone or in a flexible off the shelf configurable system.

The Micropack power system extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.

Datasheet Inquiry

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

Convection cooled – inaudible
Accepts 85 – 300 Vac/Vdc input
12, 24-30, 48 Vdc output versions
NiCad support for 12 and 24 Vdc
Quick-trip pulse to help open load MCB
Pot-meter voltage adjustment for standalone
Module alarm relay contact for basic monitoring without controller
Active current sharing
Modular approach in DIN-rail mountable back planes
Off-the-shelf delivery

Specifications

Input
Voltage AC (operating range): 85 - 300 VAC
Voltage DC (operating range): 85 - 300 VDC
DC Output
Max Power: 240 W
Voltage (adjustable range): 21.5 - 36 VDC
Current (maximum): 10 ADC
Max Voltage: 36 VDC
Other
Cooling: Convection
Efficiency: 92%
Operating Temperature: -40 to 142°F
Dimensions
Dimensions (W x H x D): 1.54 x 3.48 x 5.87 inch [39 x 88.5 x 149 mm]
Weight: 1.1 lbs
Design Standards
Ingress Protection (IP): 20
