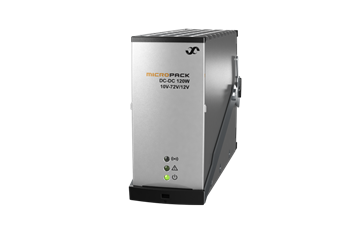

Micropack DC/DC 10-72V/12V, 120W

Great Small Power

The Micropack DC/DC 120W is a convection cooled converter for 12 Vdc equipment up to 480W. With an input range of 10-72 Vdc, the Micropack DC/DC 120W can be powered from 12, 24, 48 and 60 volt battery back-up systems.

The Micropack DC/DC 120W is a convection cooled converter for 12 Vdc equipment up to 480W. With an input range of 10-72 Vdc, the Micropack DC/DC 120W can be powered from 12, 24, 48 and 60 volt battery back-up systems.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Compact and shallow (149 mm deep)
  • DINrail mountable
  • On-site configurable
  • Off the shelf delivery
  • Stand-alone option
  • Hot plug in modules
  • Quick trip pulse



Specifications
  1. Input
  2. Voltage DC (operating range): 10.4 - 72 VDC
  4. DC Output
  5. Max Power: 120 W
  6. Voltage (adjustable range): 10.7 - 18 VDC
  7. Current (maximum): 11.5  ADC
  8. Max Voltage: 18 VDC
  10. Other
  11. Cooling: Convection
  12. Efficiency: 92.5%
  13. Operating Temperature: -40 to 158°F
  15. Dimensions
  16. Dimensions (W x H x D): 1.54 x 3.48 x 5.87 inch [39 x 88.5 x 149 mm]
  17. Weight: 1.1 lbs
  19. Design Standards
  20. Ingress Protection (IP): 20
