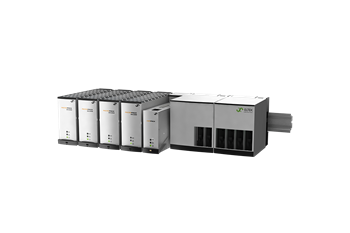

Micropack system

The Micropack system is convection cooled, designed for less power hungry applications, but still with system functionality options to match any requirements. Use as stand alone or in a flexible off the shelf configurable system.

The Micropack Power System extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.

Datasheet Inquiry

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

Compact and shallow (149 mm deep)
Din rail mountable
On-site configurable
Off the shelf delivery
Stand-alone option (w/alarm relay)
Plug-in breakers or bulk output
Accepts 85 – 300V AC/DC input
12, 24-30, 48 Vdc output versions
Ethernet for remote and local monitoring and control via WEB Browser
SNMP protocol with TRAP, SET and GET on Ethernet. Email of TRAP alarms
3 digital programmable relay outputs 3 programmable multipurpose inputs

Specifications

Input
Max Input AC Voltage: 300 VAC
Max Input DC Voltage: 300 VDC
Mains Configuration: 230 VAC Single phase
DC Output
Voltage (adjustable range): 12 - -48 VDC
Current (maximum): 40 ADC
Max Voltage: -48 VDC
Max Power: 1 kW
Battery Distribution
Breaker Positions up to: 2
Breaker Rating up to: 30 A
LVBD: Yes
DC Load Distribution
Breaker Positions up to: 4
Breaker Rating up to: 15 A
Other
Operating Temperature: -40 to 65°C
Storing Temperature: -40 to 85°C
Dimensions
Dimensions (W x H x D): 9.09 x 3.5 x 5.87 inch [231 x 89 x 149 mm]
Weight: 6 lbs
