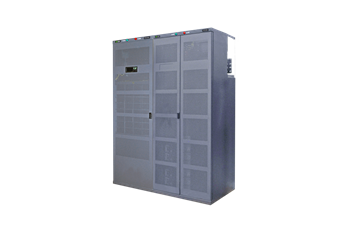

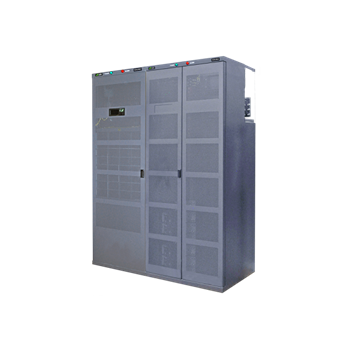

Scalable DC power system

The Eltek acalable DC power system offers an array of configurable components that come together to produce large-scale, high-power solutions—up to half a million watts!

Eltek’s scalable line of power solutions is comprised of configurable components designed to meet the needs of Central Offices and other high-power DC applications.A variety of rectifier bays provides 48V DC output ranging from 3000A to 20,000A (if cabled).

Distribution options offer everything from bulk output to circuit breakers, fuses, and even overhead bus arrangements with shunts.



Product Introduction

Features & Benefits
  • Plant Configurations
  • Scalable plant design consists of at least one main rectifier bay with master controller
  • Additional rectifier and distribution bays can be directly linked together by bus bars
  • Bays can be configured side-by-side in any orderTwo bay models for three-phase Powerpack rectifiers
  • Accommodates up to 15 rectifiers
  • Output DC current of up to 3000A per bay
  • DC bus available in 3000A, 6000A, and 10,000A ratings
  • Control and monitoring devicesBulk bus on each bay
  • 3000A, 6000A, and 10,000A ratings available
  • Bottom-feed buses available
  • Distribution bays
  • 48 configurable distribution positions
  • Modules available for small and large circuit breakers and fuses
  • Alarm and shunt monitoring
  • Internal bus work rated for 3000A or 6000A
  • High-current bay shunt (either 4000A or 8000A)
  • Top and bottom cable access
  • Interactive controller display on primary rectifier bay (Smartpack2 Master)
  • 12 alarm inputs and outputs available
  • Distribution alarm and shunt monitors in distribution bays
  • Optional add-on devices for monitoring alarms, shunts, temperatures, and voltages at several points.



Specifications
  1. Input
  2. Current (maximum): 10000 ADC
  3. Voltage AC (operating range): 208 - 480 VAC
  4. Voltage DC (operating range): 43 - 56 VDC
  5. Max Input AC Voltage: 530 VAC
  6. Max Input DC Voltage: 56 VDC
  8. Electrical
  9. Power Consumption: 4.5 W
  10. MTBF: 1300000 h
  12. System Connections
  13. Voltage: 1 or 3
  14. Current: 1 or 2
  15. Battery: (1) Midpoint
  16. Load: Ground fault detection
  18. Output
  19. Output: Form-C Dry Contact (NO-C-NC) Max 75V
  21. Configurable Inputs
  22. Number of Configurable Inputs: 12
  23. Digital Configurations: #1-12: Open/Closed
  24. Number of Analog Configurations: 3
  25. Analog Configurations: Temperature: NTC probe Analog:+/-0-10V 4-20mA current sensing
  27. DC Output
  28. Max Power: 11000 W
  29. Voltage (adjustable range): 43 - 56 VDC
  30. Current (maximum): 10000 ADC
  31. Max Voltage: 56 VDC
  32. Max Power: 165 kW
  34. Ports
  35. Available Ports: Ethernet; RS-282;RS-485
  37. Display
  38. Size: 3,2 "
  39. Resolution: QVGA 32k color TFT
  41. DC Load Distribution
  42. Breaker Positions Up to: 48
  43. Breaker Rating Up to: 1200 A
  44. LVLD: No
  45. GJ Breaker/TPL Fuse Panel: 48 Pole Positions
  46. Bulk Connections: 8
  48. AC Load Distribution
  49. Number of Breakers: 8
  50. Breaker Rating Up to: 60 A
  52. Other
  53. Cooling: Double fan
  54. Efficiency: 94 %
  55. Operating Temperature: -10 - 40 °C
  56. Storing Temperature: -40 - 70 °C
  57. Mounting Type: Floor
  59. Dimensions
  60. Dimensions (W x H x D): 23,6 x 84 x 25,3 inch
  61. Weight: 753 lbs
  63. Certifications
  64. UL: UL 60950-1
  65. Telcordia Approvals: NEBS GR1089-CORE;NEBS GR63 CORE Zone 4
  67. Software Functionality
  68. Rectifier Functions/Monitoring:
    ⦁ Individual rectifier current measurement
    ⦁ Individual rectifier input voltage
    ⦁ Efficiency management
    ⦁ Emergency voltage
    ⦁ Startup delay
    ⦁ Detailed internal alarms summary
