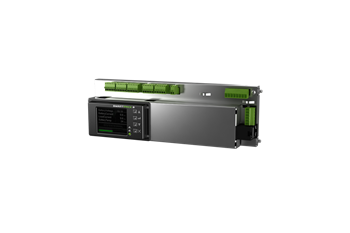

Smartpack S Panelmount

Compact, Rich-featured, Hot swappable, All-in-one Controller

The Smartpack S covers all control and monitoring needs of small to medium telecomand industrial dc power systems. Status and configuration is fully available through thedisplay locally, or through the Ethernet plugboth remote or locally.

Designed for the Flatpack S system platform, the Smartpack S finds its way into many spacerestricted application. Used in the 1U high,265mm deep power racks, Smartpack S offerscomprehensive monitoring and control of a 2-3kW system occupying less than 6 liters.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Graphical 2.2” tft high contrast, high resolution color display for easy navigation in user menu
  • Ethernet for remote or local monitoring and control via web browser
  • SNMP protocol with trap, set and get on ethernet. email of trap alarms
  • 6 programmable relay outputs
  • 6 programmable multi-purpose inputs (“digital inputs” or analog signals).
  • Comprehensive logging
  • Automatic battery monitoring and test
  • Battery quality SoH based on test results and more



Specifications
  1. Input
  2. Voltage DC (operating range): 10 - 75 VDC
  4. Electrical
  5. Power Consumption: 3.1 W
  6. MTBF: 900000 h
  8. System Connections
  9. Voltage: 1
  10. Current: 1
  11. Battery: (2) midpoint
  12. Load: Grount fault detection
  14. Output
  15. Form-C Dry Contact (NO-C-NC) Max 75V
  17. Configurable Inputs
  18. Number of Configurable Inputs: 6
  19. Digital Configurations: #1-6: Open/Closed
  20. Number of Analog Configurations: 6
  21. Analog Configurations:
    #1-4: Temperature: NTC probe
    Analog:+/-0-10V 4-20mA current sensing
  23. LVD
  24. Batteries: 1
  25. Loads: 1
  27. Port
  28. Available Ports: Ethernet; RS-282; RS-485
  30. Display
  31. Size: 2.2"
  32. Resolution: QVGA 32k color TFT
  34. Other
  35. Operating Temperature: -4 to 149°F
  36. Storing Temperature: -40 to 158°F
  38. Dimensions
  39. Dimensions (W x H x D): 9.1 x 3 x 1.3 inch [232.2 x 76.2 x 33 mm]
  41. Design Standards
  42. Ingress Protection (IP): 20
  44. Certifications
  45. Marine: DNV 2.4 Valid for part no. 242100.415M
  47. Software Funcionality
  48. Remote Monitoring:
    DHCP DHCPv6 SNMP v1, v2c and v3 MODBUS TCP/RTU Slave Modem Call-back & SMS Alarm for GSM modems IPv4 IPv6 (static-link) IPv6 (stateless autoconfig) IPv6 (statefull autoconfig) - DHCPv6 SNTP - clock syncronizing SMTP/email custom reports as .csv attached SMTP Secure RADIUS (single-sign on) FTP - file transfeer (SW updates, log's download, etc) FTPS - FTP secure UDP pComm for PowerSuite (Windows Config/Monitoring Tool) HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen) HTTPS (TLS enqrypted web interface)
  49. Rectifier Functions/Monitoring:
    Efficiency Manager HE Priority Slow/Fast/Li-Ion voltage ramp-up Power Ramp Up Adjustable Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Start-Up delay Rectifier Current Monitoring (2-level Alarm) Rectifier Error Monitoring (2-level Alarm) Rectifier Communication Error Monitoring (2-level Alarm) Rectifier Usage Monitorting (2-level Alarm) Rectifier Usage BT Spec Monitorting (2-level Alarm) Rectifier Current Share Error Monitorting (2-level Alarm) Rectifier Input Air Temperature Highest Monitorting (2-level Alarm) Rectifier Qty with Low Mains Monitorting (2-level Alarm)
  50. Rectiverter Functions/Monitoring:
    Adjustable output frequency Adjustable output AC voltage Adjustable frequency hold-in range/hysteresis for inverter mode Adjustable DC Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Rectiverter AC Output Voltage Phase 1, 2 & 3 Monitoring (4-level Alarm) Rectiverter AC Output Frequency Monitoring (4-level Alarm) Rectiverter AC Output Current Phase 1, 2 & 3 Monitoring (2-level Alarm) Rectiverter DC Output Current Total Monitoring (2-level Alarm) Rectiverter Error Monitoring (2-level Alarm) Rectiverter AC Current Share Error Phase1, 2 & 3 Monitoring (2-level Alarm) Rectiverter AC Capacity Monitoring (2-level Alarm) Rectiverter DC Capacity Monitoring (2-level Alarm) Rectiverter Temperature (4-level Alarm) Rectiverter Communication Error Monitoring (2-level Alarm)
  51. Battery Management/Monitoring:
    Temperature Compensation Symmetry - Midpoint measurement 12V, 24V, 30V, 36V Symmetry - Block measurement 6V, 12V, 24V Auto Boost Charge Interval Boost Charge Follow-up Boost Charge Equalize Charge, manual & inerval Temperature Compensation during Boost & Equalize Charge Battery Discharge Health (SoH) testing - normal, based on discharge batt. Spec. Battery Discharge Health (SoH) testing - simple, based on backup time requirement Battery Discharge Health (SoH) testing - manual, interval, or alternate scheme Battery Test logging Battery DoD Cycle logging Battery Cycle counter logging Battery Run time logging Battery LifeTime Prediction based on temp ranges Battery Discontinuance Testing -simple or advanced (based on shunt in each string) Analog Battery Float charge regulation based on input voltage signal Battery Voltage Monitoring (4-level alarm) Battery Current Monitoring (4-level alarm) Highest of multiple battery temperature Monitoring (4-level alarm) Individual Battery Temperatures (4-level alarm) Battery SoC Monitoring (2-level Alarm), % or Ah Accumulated Ah Charged/Discharged Monitoring (2-level alarm) Failed Battery Test Monitoring (1-level alarm) Individual Battery Fuse Monitoring (1-level alarm) Individual Battery String Current Monitoring (2-level alarm) FIAMM SONICK Battery BMS communication SAFT Evolion Battery BMS communication Narada Battery BMS communication Leoch Battery BMS communication Sacred Sun Battery BMS Battery BMS communication Northstar ACE Battery(Gateway) communication Eltek Generic Battery communiction protocol LVBD (voltage, temperature, mains controllable)
  52. Mains/Grid Monitoring:
    Phase Failure Monitoring (2-level Alarm) Phase Voltage Monitoring (4-level Alarm) Frequency Monitoring (2-level Alarm)* Active/Reactive/Apperent Power Moitoring 3 phases (2-level Alarms)* Power Factor Monitoring 3 phases (2-level Alarm)* Mains Current Monitoring 3 phases (2-level Alarms)* *Require AC Mains Monitor CAN Node or Smartmeter communication
  53. Load Management/Monitoring:
    LVLD Coldstart LVLD Load Fuse Monitoring (1-level alarm) Load Current Monitoring (2- level alarm) Individual Load Fuse Monitoring (1-level alarm) Individual Load Current Monitoring (2- level alarm) Individual Load Power Monitoring Individual Load Energy logging Individual Load Energy cost logging
  54. Programmable Logic:
    OR function of multiple alarms/events AND function of multiple alarms/events Inversion of logical signals Task Scheduler (hourly, daily, weekly, monthly) of any commands/events Alarm Grouping
  55. Available Logs:
    Energy Logging (mains, rectifier, rectiverter, battery, load) - hourly, dailiy, weekly Data Logging (10 parameters, various trigger intervals and event triggers) BHL/HAA-loggs Account login log Change log Inventory Export
  56. Climate Control & Monitoring:
    Fan control, linear speed vs. temp / max speed Fan Speed Deviation Monitoring Humidity Reduction Intervall Preasure Test
  57. Various Controllers:
    Security setup (open/close UDP/TCP ports) User Account Setup Programmable Buzzer Remote Software Upgrade - maincontroller over IP Remote Software Upgrade - CAN Nodes through maincontroler via FTP Controller/Power Module LED Test Programmable Viritual Inputs XML Configurations - full parameter flexibility XML Configurations - mass distribution, Web GUI Upload, Windows Upload, SD Card/FTP Upload
