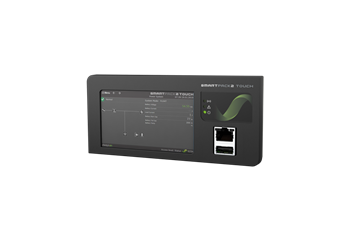

Smartpack2 Touch

Distributed Control System

Full control at your fingertips! The new Smartpack2 Touch raw power with a touch of elegance.

New features and look on a well-tested control platform Eltek’s new Smartpack2 Touch controller offers much more than its delicately designed exterior suggests. It will be for power system managers what the smart phone is for people in general: so powerful and yet so simple to use it becomes an essential part of daily life.

The Smartpack2 Touch is the next generation controller, and its the only controller that you need. It supports all your equipment, Eltek, Delta or 3rd party, and it has the highest security rating.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Touch screen - High contrast, high resolution color touch display for easy user-menu navigation
  • 2x can bus for internal power system communication, 2x usb hosts, 2x ethernet, rs-232 &amp
  • rs-485 serial ports for 3rd party equipment monitoring
  • Visual leds and buzzer for local alarms (major, minor, power on)
  • Monitoring and control via responsive web interface on ethernet ports
  • SNMP protocol: Comprehensive content on set, get and traps
  • 6 programmable outputs for “traditional” remote monitoring.
  • Expandable outputs with I/O monitor can nodes
  • 6 programmable multipurpose inputs (“digital inputs” or analog signals).
  • Expandable inputs with i/o monitor can nodes
  • Comprehensive logging
  • Backup of critical control features in basic unit
  • Automatic battery monitoring and test
  • Battery lifetime indication
  • Battery used and remaining capacity (ah or %)
  • User defined alarm grouping(boolean logic for grouped alarms)
  • Uploading and downloading of configuration files
  • Comprehensive generator/hybrid/dc solar system control and monitoring features



Specifications
  1. Input
  2. Voltage DC (operating range): 20 - 420 VDC
  4. Electrical
  5. Power Consumption: 5.4 W
  6. MTBF: 1300000 h
  8. System Connections
  9. Voltage: 1 or 3
  10. Current: 1 or 2
  11. Battery: (2) midpoint
  12. Load: Ground fault detection
  14. Output
  15. Form-C Dry Contact (NO-C-NC) Max 75V
  17. Configurable Inputs
  18. Number of Configurable Inputs: 6
  19. Digital Configurations: #1-6: Open/Closed
  20. Number of Analog Configurations: 3
  21. Analog Configurations:
    - Temperature: NTC probe
    - Analog:+/-0-10V 4-20mA current sensing
  23. LVD
  24. Loads: 2
  26. Port
  27. Available Ports: CAN; Ethernet; I2C; RS-282; RS-485; USB
  29. Display
  30. Size: 4.4"
  31. Resolution: 480 x RGB x 272
  33. Battery Distribution
  34. LVBD: Yes
  36. DC Load Distribution
  37. LVLD: Yes
  39. Other
  40. Operating Temperature: -4 to 149°F
  41. Storing Temperature: -40 to 185°F
  42. Insulation: Yes
  44. Dimensions
  45. Dimensions (W x H x D): 6.8 x 3.1 x 1.6 inch [174 x 78 x 41 mm]
  47. Design Standards
  48. Ingress Protection (IP): 22
  50. Certifications
  51. Marine: IEC 60945/DNVGL CG-0339
  53. Software Funcionality
  54. Remote Monitoring:
    DHCP DHCPv6 SNMP v1, v2c and v3 MODBUS TCP/RTU Slave Modem Call-back & SMS Alarm for GSM modems pComm (Windows Config/Monitoring Tool) via Modem & IP IPv4 IPv6 (static-link) IPv6 (stateless autoconfig) IPv6 (statefull autoconfig) - DHCPv6 SNTP - clock syncronizing SMTP/email custom reports as .csv attached SMTP Secure RADIUS (single-sign on) FTP - file transfeer (SW updates, log's download, etc) FTPS - FTP secure UDP pComm for PowerSuite (Windows Config/Monitoring Tool) HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen) HTTPS (TLS enqrypted web interface)
  55. Rectifier Functions/Monitoring:
    Efficiency Manager HE Priority Slow/Fast/Li-Ion voltage ramp-up Power Ramp Up Adjustable Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Start-Up delay Rectifier Current Monitoring (2-level Alarm) Rectifier Error Monitoring (2-level Alarm) Rectifier Communication Error Monitoring (2-level Alarm) Rectifier Usage Monitorting (2-level Alarm) Rectifier Usage BT Spec Monitorting (2-level Alarm) Rectifier Current Share Error Monitorting (2-level Alarm) Rectifier Input Air Temperature Highest Monitorting (2-level Alarm) Rectifier Qty with Low Mains Monitorting (2-level Alarm) RectifierGroup Monitoring (A+B Systems) Individual Group Current Share control (A+B Systems) Individual Group Charge Regulation (A+B Systems)
  56. Rectiverter Functions/Monitoring:
    Adjustable output frequency Adjustable output AC voltage Adjustable frequency hold-in range/hysteresis for inverter mode Adjustable DC Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Rectiverter AC Output Voltage Phase 1, 2 & 3 Monitoring (4-level Alarm) Rectiverter AC Output Frequency Monitoring (4-level Alarm) Rectiverter AC Output Current Phase 1, 2 & 3 Monitoring (2-level Alarm) Rectiverter DC Output Current Total Monitoring (2-level Alarm) Rectiverter Error Monitoring (2-level Alarm) Rectiverter AC Current Share Error Phase1, 2 & 3 Monitoring (2-level Alarm) Rectiverter AC Capacity Monitoring (2-level Alarm) Rectiverter DC Capacity Monitoring (2-level Alarm) Rectiverter Temperature (4-level Alarm) Rectiverter Communication Error Monitoring (2-level Alarm)
  57. Solar Charger Functions/Monitoring:
    Charger module built in MPPT Voltage Input Value Solar Charger Current Monitoring (2-level Alarm) Solar Charger Error Monitoring (2-level Alarm) Solar Charger Communication Error Monitoring (2-level Alarm) Solar Charger Panel Unbalance Monitorting (2-level Alarm)
  58. Wind Charger Functions/Monitoring:
    Configurable Power-Voltage Characteristics Curve in charger module Wind Charger Current Monitoring (2-level Alarm) Wind Charger Error Monitoring (2-level Alarm) Wind Charger Communication Error Monitoring (2-level Alarm)
  59. Battery Management/Monitoring:
    Temperature Compensation Symmetry - Midpoint measurement 12V, 24V, 30V, 36V, 54V, 108, 110V, 168V Symmetry - Double midpoint measurement Symmetry - Block measurement 6V, 12V, 24V Symmetry - Cell measurement 2V, 6V Auto Boost Charge Interval Boost Charge Follow-up Boost Charge Equalize Charge, manual & inerval Temperature Compensation during Boost & Equalize Charge Battery Discharge Health (SoH) testing - normal, based on discharge batt. Spec. Battery Discharge Health (SoH) testing - simple, based on backup time requirement Battery Discharge Health (SoH) testing - manual, interval, or alternate scheme Battery Test logging Battery DoD Cycle logging Battery Cycle counter logging Battery Run time logging Battery LifeTime Prediction based on temp ranges Battery Discontinuance Testing -simple or advanced (based on shunt in each string) Analog Battery Float charge regulation based on input voltage signal Battery Voltage Monitoring (4-level alarm) Battery Current Monitoring (4-level alarm) Highest of multiple battery temperature Monitoring (4-level alarm) Individual Battery Temperatures (4-level alarm) Battery SoC Monitoring (2-level Alarm), % or Ah Accumulated Ah Charged/Discharged Monitoring (2-level alarm) Failed Battery Test Monitoring (1-level alarm) Individual Battery Fuse Monitoring (1-level alarm) Individual Battery String Current Monitoring (2-level alarm) FIAMM SONICK Battery BMS communication SAFT Evolion Battery BMS communication Narada Battery BMS communication Leoch Battery BMS communication Sacred Sun Battery BMS Battery BMS communication Northstar ACE Battery(Gateway) communication Eltek Generic Battery communiction protocol LVBD (voltage, temperature, mains controllable)
  60. Mains/Grid Monitoring:
    Phase Failure Monitoring (2-level Alarm) Phase Voltage Monitoring (4-level Alarm) Frequency Monitoring (2-level Alarm)* Active/Reactive/Apperent Power Moitoring 3 phases (2-level Alarms)* Power Factor Monitoring 3 phases (2-level Alarm)* Mains Current Monitoring 3 phases (2-level Alarms)* *Require AC Mains Monitor CAN Node
  61. Load Management/Monitoring:
    LVLD Coldstart LVLD Load Fuse Monitoring (1-level alarm) Load Current Monitoring (2- level alarm) Individual Load Fuse Monitoring (1-level alarm) Individual Load Current Monitoring (2- level alarm) Individual Load Power Monitoring Individual Load Energy logging Individual Load Energy cost logging
  62. Programmable Logic:
    OR function of multiple alarms/events AND function of multiple alarms/events Inversion of logical signals Task Scheduler (hourly, daily, weekly, monthly) of any commands/events Alarm Grouping
  63. Hybrid Functionality/Monitoring:
    SoC Controlled Gen Set start/stop Voltage Conrolled Gen Set start/stop Daily Schedule Controlled Gen Set start/stop Soruce Limitation for Gen Set Testing Priorty Solar Charger Priority Wind Charger Fuel Tank level Monitoring (2-level Alarm)
  64. Available Logs:
    Energy Logging (mains, rectifier, rectiverter, grid inverter, solar charger, wind, battery, load) - hourly, dailiy, weekly Data Logging (10 parameters, various trigger intervals and event triggers) BHL/HAA-loggs Account login log Change log Inventory Export
  65. Climate Control & Monitoring:
    Fan control, linear speed vs. temp / max speed* Fan Speed Deviation Monitoring* Humidity Reduction* Intervall Preasure Test* *Require I/O Montior T3

    Various Controllers:
    Security setup (open/close UDP/TCP ports) User Account Setup Programmable Buzzer Remote Software Upgrade - maincontroller over IP Remote Software Upgrade - CAN Nodes through maincontroler via FTP Controller/Power Module LED Test Programmable LED Panel (16 LED / 4 color + 4 Push Button) Programmable Viritual Inputs XML Configurations - full parameter flexibility XML Configurations - mass distribution, Web GUI Upload, Windows Upload, SD Card/FTP Upload
