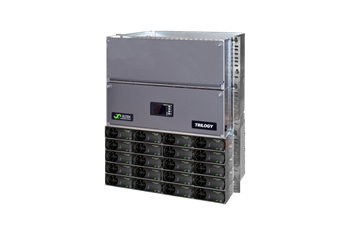

Trilogy with Smartpack S

Eltek’s Trilogy DC power system, powered by the Flatpack2 line of power modules, brings 150A-600A to applications where space is limited. Use of the highly-efficient and reliable Flatpack2 rectifier, remarkably flexible distribution, and the advanced Smartpack S controller make for optimal system design and cost-effective deployment.

At only 16 to 19 deep (depending on model), the Trilogy system is designed for use in rack spaces and cabinets. Both 19 and 23 rack widths are available.Powered by Flatpack2 HE rectifier modules, typical efficiency exceeds 95% at both 24 Vdc and 48 Vdc output. Flatpack2 DC/DC converters can also be added within the same system footprint.

The distribution sections features unique circuit breaker holders that facilitate at-will assignment in the field to one of two output buses. Bulk cable connections are available in the rear of the distribution. All cabling is vertical, further reducing horizontal space demands.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • COMPACT DESIGN
    Small overall dimensions are ideal for both rack and cabinet solutions.
  • CONFIGURABLE DISTRIBUTION
    Circuit breakers can be assigned at-will to one of two output busses bulk output landings are available and an LVD contactor can be included.
  • DIGITAL CONTROLLERS
    The SmartpackSdigital controller system provides comprehensive monitoring and regulation by utilizing a variety of specialized data collection devices.
  • HEAT MANAGEMENT
    Flatpack2 modules feature front-to-back airflow and chassis-integrated heat-sinks, supplementing high-efficiency energy conversion with excellent heat management.
  • COST-EFFICIENCY
    A true plug-and-play system, the Trilogy system reduces both time-to-install and overall costs.



Specifications
  1. Input
  2. Voltage AC (operating range): 100 - 277 VAC
  4. Output
  5. 6 form-C output relays included on I/O Monitor2 (NO, C, NC)
  7. Confugurable Inputs
  8. Number of Configurable Inputs: 9
  9. Digital Configurations: 3 inputs included on Basic controller (NO, NC, ambient temp, or battery temp) 6 inputs included on I/O Monitor2 (NO, NC, or voltage)
  11. DC Output
  12. Voltage (adjustable range): 0 - 54 VDC
  13. Current (maximum): 600 ADC
  14. Max Voltage: 54 VDC
  15. Max Power: 32 kW
  17. LVD
  18. Batteries: 8
  19. Loads: 24
  21. Port
  22. Available Ports: Ethernet
  24. Display
  25. Size: 3.2"
  26. Resolution: QVGA 32k color TFT
  28. DC Load Distribution
  29. 24-position Bullet Breaker Panel:
    - Distribution configurations
    - Top bus options include battery, converter, or LVLD. For systems with a converter or LVLD, battery connections are on the bulk bus bar
    - Bottom bus is the primary load bus.
    - Available breaker positions; positions are configurable in the field for top or bottom bus.
    - 19 systems – 20 breaker positions per panel.*
    - 23 systems – 24 breaker positions per panel.*
    (*Up to two panels)
  30. Bulk Connections: Eight (8) battery connections
  32. Other
  33. Mounting Type: Rack 19”; Rack 23”
  35. Certifications
  36. UL: UL/CSA 60950-1
  37. Telcordia Approvals: NEBS GR1089-CORE; NEBS GR63 CORE Zone 4
  39. Software Functionality
  40. Remote Monitoring:
    DHCP DHCPv6 SNMP v1, v2c and v3 MODBUS TCP/RTU Slave Modem Call-back & SMS Alarm for GSM modems pComm (Windows Config/Monitoring Tool) via Modem & IP IPv4 IPv6 (static-link) IPv6 (stateless autoconfig) IPv6 (statefull autoconfig) - DHCPv6 SNTP - clock syncronizing SMTP/email custom reports as .csv attached SMTP Secure RADIUS (single-sign on) FTP - file transfeer (SW updates, log's download, etc) FTPS - FTP secure UDP pComm for PowerSuite (Windows Config/Monitoring Tool) HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen) HTTPS (TLS enqrypted web interface)
  41. Rectifier Functions/Monitoring:
    Efficiency Manager HE Priority Slow/Fast/Li-Ion voltage ramp-up Power Ramp Up Adjustable Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Start-Up delay Rectifier Current Monitoring (2-level Alarm) Rectifier Error Monitoring (2-level Alarm) Rectifier Communication Error Monitoring (2-level Alarm) Rectifier Usage Monitorting (2-level Alarm) Rectifier Usage BT Spec Monitorting (2-level Alarm) Rectifier Current Share Error Monitorting (2-level Alarm) Rectifier Input Air Temperature Highest Monitorting (2-level Alarm) Rectifier Qty with Low Mains Monitorting (2-level Alarm) RectifierGroup Monitoring (A+B Systems) Individual Group Current Share control (A+B Systems) Individual Group Charge Regulation (A+B Systems)
  42. Battery Management/Monitoring:
    Temperature Compensation Symmetry - Midpoint measurement 12V, 24V, 30V, 36V, 54V, 108, 110V, 168V Symmetry - Double midpoint measurement Symmetry - Block measurement 6V, 12V, 24V Symmetry - Cell measurement 2V, 6V Auto Boost Charge Interval Boost Charge Follow-up Boost Charge Equalize Charge, manual & inerval Temperature Compensation during Boost & Equalize Charge Battery Discharge Health (SoH) testing - normal, based on discharge batt. Spec. Battery Discharge Health (SoH) testing - simple, based on backup time requirement Battery Discharge Health (SoH) testing - manual, interval, or alternate scheme Battery Test logging Battery DoD Cycle logging Battery Cycle counter logging Battery Run time logging Battery LifeTime Prediction based on temp ranges Battery Discontinuance Testing -simple or advanced (based on shunt in each string) Analog Battery Float charge regulation based on input voltage signal Battery Voltage Monitoring (4-level alarm) Battery Current Monitoring (4-level alarm) Highest of multiple battery temperature Monitoring (4-level alarm) Individual Battery Temperatures (4-level alarm) Battery SoC Monitoring (2-level Alarm), % or Ah Accumulated Ah Charged/Discharged Monitoring (2-level alarm) Failed Battery Test Monitoring (1-level alarm) Individual Battery Fuse Monitoring (1-level alarm) Individual Battery String Current Monitoring (2-level alarm) FIAMM SONICK Battery BMS communication SAFT Evolion Battery BMS communication Narada Battery BMS communication Leoch Battery BMS communication Sacred Sun Battery BMS Battery BMS communication Northstar ACE Battery(Gateway) communication Eltek Generic Battery communiction protocol LVBD (voltage, temperature, mains controllable)
