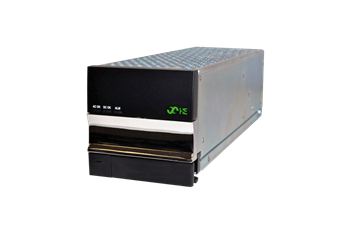

V-Series High Efficiency Rectifiers

Eltek V-series rectifiers provide industry-leading efficiency in a 2RU footprint. Reliability, scalability, and hot-swap capability make for optimal system design and cost-effective deployment – from initial installation to future upgrades.The high efficiency (HE) models deliver up to 96% conversion efficiency.

Vertically cooled 2RU rectifiers with wide range of output modules available.



Datasheet Inquiry

Product Introduction

Features & Benefits
  • Average 96% efficiency (V-series HE models)
  • V-series high efficiency (HE) rectifiers are ENERGY STAR qualified products
  • Only 2RU in height
  • Operates at full power in temperatures up to +65ºC
  • NEBS level 3



Specifications
  1. Input
  2. Voltage AC (operating range): 100 - 240 VAC
  4. DC Output
  5. Max Power: 2500 W
  6. Voltage (adjustable range): 42 - 56 VDC
  7. Current (maximum): 50 ADC
  8. Max Voltage: 56 VDC
  10. Other
  11. Cooling: Single fan
  13. Certifications
  14. UL: UL 60950-1
  15. Telcordia Approvals: NEBS GR1089-CORE; NEBS GR63 CORE Zone 4
